Caracteristicas

Especificaciones

Capacity: 50L

Automatic Grade: Automatic

Type: Tank Reactor

Condition: New

Video outgoing-inspection: Not Available

Machinery Test Report: Not Available

Marketing Type: Ordinary Product

Warranty of core components: 1 Year

Core Components: Motor

Voltage: Customized, 220-480v

Power: 1.1kw

Dimension(L*W*H): customized

Weight: 200kg

Warranty: 1 Year

Key Selling Points: High Safety Level

Applicable Industries: Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Energy & Mining, Food & Beverage Shops

Showroom Location: None

After-sales Service Provided: online service provided, Online support

pressure: 0.25-0.5Mpa

After Warranty Service: Video technical support, Online support

Local ServiceÂ Location: None

Certificación: CE

Información básica

Certificación: CE

Pago y Envío Términos

Packaging Details: plywood case

Supply Ability: 100 Set/Sets per Month

Descripción de producto

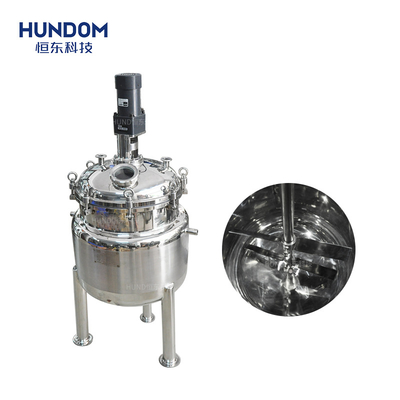

Customized Small Lab 50L SS Enzymolysis Mixing Tank reactor With Electric Heatingl

Reactor is mainly used for the production chains such as hydrolysis,crystallization,distillation, evaporation and storage in the industries of medicine, chemical industry,food and light industry etc. SS reactor is made of SS304 and SS316 etc.stainless steel material.The mixers are divided into anchor type,frame type,oar type and turbo type etc.The rotation mechanism can adopt cycloid pin gear reducer and stepless speed reducer.The sealing mechanism can adopt mechanical sealing.The heating and cooling can adopt jacket, semi-tube and coil structure etc.structures.The heating methods are steam,electrical heating and heat guiding oil to satisfy the technology requirements under different work environment such as anti-acid,anti-high-temperature,anti-abrasion and anti-corrosion.The design and manufacturing can be carried out according to the technology requirements of customers

Specifications

1. Material :304(L) 316(L)
2. Finish:Mirror or Matt Polish; Ra<0.4um

3. Fully conforms to GMP requirements

4. According to technological requirement, the tank can heat and cool materials. The heating way including steam heating and electric heating.

5. Various forms of blending vanes are suitable for production of different types of products.

6. Easy to discharge, bottom direct discharge or by transfer pump.

Technical Parameters

Model	HD100	HD200	HD300	HD500	HD1000	HD1500	HD2000	HD3000	HD5000
Volume(L)	100	200	300	500	1000	1500	2000	3000	5000
Diameter(mm)	500	600	700	800	1000	1200	1200	1400	1400
Pressure(Mpa)	0.25-0.5
Jacket pressure(Mpa)	0.25
Power(kw)	1.1	1.5	4	4	5.5	5.5	5.5	5.5	7.5
Speed(r/min)	63 85 130 180

Product Description

Factory Customized Small Laboratory 50L SS Enzymolysis Mixing Tank Reactor With Electric Heating
